Substation Networking Simulation and Skills Training System
Applications
Designed for professional training and certification of O&M personnel in substation network configuration, it enables system-level network panoramic visualization simulation, enhances substation cybersecurity response capabilities, and conducts security incident analysis and traceability.

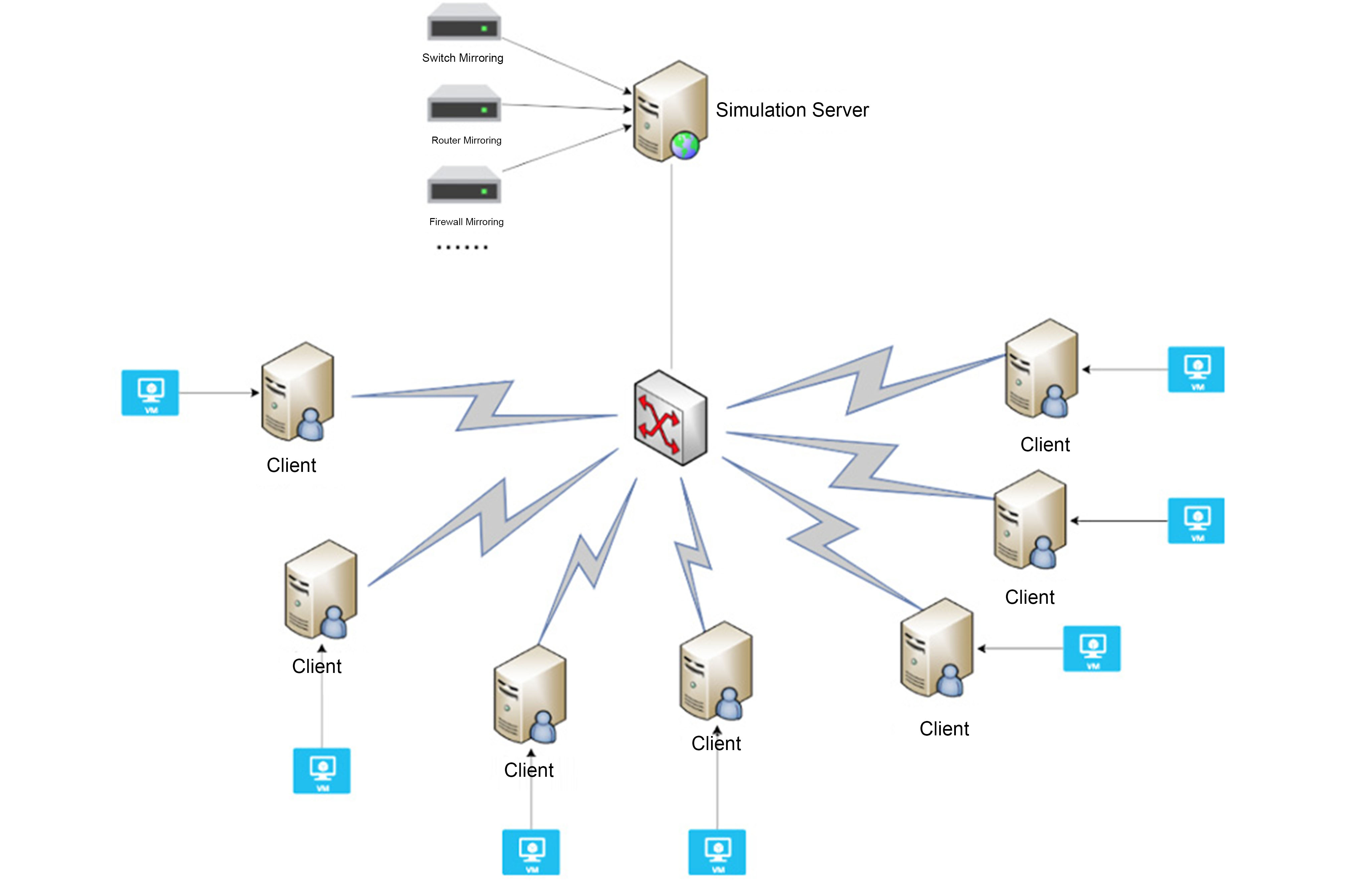

System Composition
  • The system adopts a centralized architecture consisting of servers, clients, and related network communication equipment.
  • High-configuration servers employ virtualization technology for network device simulation.
  • Clients can perform local device simulation through cluster deployment, sharing server computational load while providing visual operation of network panoramic views.



Functional Features
  • Based on dynamic topology mapping, it intelligently displays substation network architecture and device connectivity while real-time monitoring system operational status.
  • Virtual modeling and core function design for key networking equipment including switches, routers, and firewalls.
  • CLI commands precisely replicate device configuration strategies from real-world environments.
  • Leveraging smart substation SCD files to visualize process-level networks, supporting port-level networking/direct sampling link display.
  • Verification of GOOSE/SV transmission and reception, traffic statistics, and VLAN configuration for process-level equipment in simulated intelligent substations.
